how to save a .pdf file in a browser window in qtp

[ssvali]

Hi,

I need help how to save PDF file using QTP. It is a web-based application.

The following are the steps i need to perform to get the PDF.

1. Select Data from WebList
2. Click Refersh
3. Application opens a PDF File in a browser itself

When i am try to capture SAVE button of PDF, it capture whole toolbar instead of only SAVE button.

When i record it, it says Browser().Page().Frame().WinObject().Click X,Y

Awaiting for the earliest replies.

Regards,
Shashavali

[Ankesh]

can you use shortcut keys on the page to save such as Ctrl+S??? If yes, try using sendkey/Type.

Regards,
Ankesh

[freeboynil]

Try using Virtual object concept....will work.

[ssvali]

Thank you very much for ur replies...

@ Ankesh : - I tried using shortkeys "CTRL+S" , but it didn't worked.

@ freeboynil :- when i am trying to create Virtual Object, QTP throws an error "Failed to Create The Virtual Object Definition"

It will be helpful if you provide some detail about it.

[Ankesh]

@ssvali ,

It is alwys better to post the code which u hv tried, the error and the screenshot of the application.

Regards,
Ankesh

[ssvali]

Here is the script and snapshot

Code:

Browser("").Page("").Frame("").Image("Refresh").highlight
Browser("").Page("").Frame("").Image("Refresh").Click

Browser("").Page("").Sync
Set WshShell = CreateObject("WScript.Shell")
Browser("").Page("").Frame("").highlight
WshShell.SendKeys "%s"

[Ankesh]

Can you see the address in you adress bar something like www.google.com/File_Opened.pdf?

If yes, you can try the below code.

Code:

'Create an object
Set WinHttp = CreateObject("WinHttp.WinHttpRequest.5.1")

        If WinHttp Is Nothing Then Set WinHttp = CreateObject("WinHttp.WinHttpRequest")

        WinHttp.Open "GET", "http://google.com/your_pdf_file.pdf", False
        WinHttp.Send

        arrArray = WinHttp.ResponseBody

        Set WinHttp = Nothing

        On Error Resume Next

        Set oADO = CreateObject("ADODB.Stream")

        If oADO Is Nothing Then
                Set oFSO = CreateObject("Scripting.FileSystemObject")
                Set oTextFile = oFSO.OpenTextFile("c:\Documnet_i_want_to_save.pdf", 2, True)
                sData = ""
                sBuffer = ""
                For iCount = 0 to UBound(arrArray)
                        oTextFile.Write Chr(255 And Ascb(Midb(arrArray,iCount + 1, 1)))
                Next
                oTextFile.Close
        Else
                oADO.Type = 1
                oADO.Open
                oADO.Write arrArray
                oADO.SaveToFile "c:\Documnet_i_want_to_save.pdf", 2  'File on your local
                oADO.Close
        End If

        Set oADO = Nothing
        Set oTextFile = Nothing
        Set oFSO = Nothing

Makes sure the proxy is disabled on your system.

Let me know if this helps.

Regards,
Ankesh

[ssvali]

Thanks ankesh for the reply.

I can see the address but not in the below mention format.
It shows only "http://www.google.com/"

[Ankesh]

Not a problem.

just update the line this WinHttp.Open "GET", "http://google.com/your_pdf_file.pdf", False


with the address which you can see. Try this once.
WinHttp.Open "GET", "http://google.com", False

---

let me know the output.

[ssvali]

Hi Ankesh,

Thanks again for the quick response. I changed script as per ur suggestion. File is saved to local drive but if i open it throws an error.

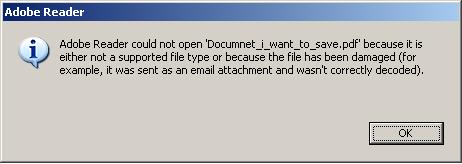

Attached is the screenshot of Error.

Regards,
ssvali
